Product Description:
The strainer in the rubber extruder machine plays a crucial role in ensuring the quality of the final rubber compound. By removing impurities, it helps prevent defects in the finished rubber products and maintains consistent material properties. The specific design and specifications of the strainer can vary depending on the application and the desired level of filtration.
This equipment has the characteristics of high production capacity, low temperature of the rubber material, low power consumption, good mixing
Sensor Selection: Choose temperature sensors suitable for the extrusion process. Common types of temperature sensors used in industrial applications include thermocouples and resistance temperature detectors (RTDs). Thermocouples are durable and can withstand high temperatures, while RTDs offer higher accuracy. Select the sensor type and specifications based on the temperature range and accuracy requirements of your extrusion process
Process Variables: Temperature control in rubber extrusion is influenced by various process variables, including screw speed, feed rate, screw design, and barrel length. These variables interact with temperature to determine the quality and properties of the final extruded product. Proper adjustment and synchronization of these variables with temperature control are essential for achieving optimal results.
The technical parameters for some models rubber Extruder :
| Model | XJL-150 | XJL-200 | XJL-250 |
| Diameter of screw(mm) | 150 | 200 | 250 |
| Length-diameter ratio (i/d) | 5.14:1 | 4.5:1 | 4:1 |
| Screw rotational speed (r/min) | 53 | 45 | 40 |
| Motor power (kw) | 37/45 | 55/75 | 110 |
| Voltage (v) | 380 | 380 | 380 |
|
|

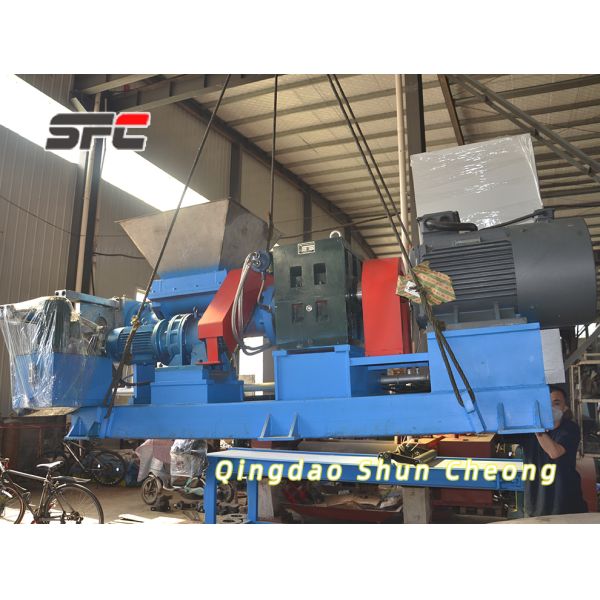

Accurate Temperature Control Force Feeding Single Screw Rubber Extruder Machine Images
|
